ELSTAR - Shock Test Machines

ELSTAR Elektronik AG is a manufacturer of one of the worlds most advanced series of mechanical shock test machines.

We can supply a range of machines capable of half sine shock amplitudes of up to 2000g and a repetition rate of up to 60 shocks/min. A major feature of our shock test machines is the ability to produce high quality highly repetitive shocks this makes Elstar Elektronik machine popular where accuracy is paramount. Many machines have been sold to watch manufacturers and to high presision optics suppliers. We are also capable of customising these machines to match individual requirements.

Our IMPALA data acquisition and closed loop control software gives great flexibility and is simple to operate.

Accurate, repeatable waveforms: The STM shock test machine gives results which meet a wide range of half sine test specifications, such as NHIS-90 ,NHIS-91, EN 60068-2-27, MIL STD 810E, BS 2011 and DEF STD 07-55.

Stand-alone design: The STM shock test machine is free standing and therefore can be placed directly on a standard laboratory floor. Because no external reaction mass is requires, costly alterations to the installation site are avoided. The machine is also easily transportable to other sites. Installation is straightforward; requiring only a high pressure airline and single phase AC power.

The STM5 has been developed to produce clean, highly reproducable half sine shocks of up to 2000g width of approx. 0.3ms. With a maximum payload of 5kg, this machine is popular with the watch- and small electro-components industry.

  • Highly reproducable half sine shocks
  • Bounce Catch Function
  • Direct payload attachment in three axis
  • IMPALA Control Software,
  • incl. Tolerance Monitor, Trends, Closed Loop, etc.
  • Integrated seismic mass
  • Remote control





Max. payload:  5 kg
Max. repetition rate:  up to 60/min.
Max. acceleration: up to 2000g
Payload area:  152mm cube
Shock-Direction: 3-axes simultanious
Floor space:  400mm x 1300mm
Weight:  ~120kg

The STM10 has been developed to produce clean, highly reproducable half sine shocks of up to 500g width of approx. 0.7ms. With a maximum payload of 10kg, this machine is popular with the watch- and small electro-components industry.

  • Highly reproducable half sine shocks
  • IMPALA Control Software,
  • incl. Tolerance Monitor, Trends, Closed Loop, etc.
  • Integrated seismic mass
  • Remote control





Max. payload:  10 kg
Max. repetition rate:  up to 80/min.
Max. acceleration: up to 500g
Payload area:  250x320mm
Shock-Direction: Z-axis
Floor space:  450mm x 370mm (height ~820mm)
Weight:  ~270kg

The STM10P has been developed to produce clean, highly reproducable half sine shocks of up to 1400g width of approx.0.4ms. With a maximum payload of 10kg, this machine is popular with the watch- and small electro-components industry.

  • Highly reproducable half sine shocks
  • IMPALA Control Software,
  • incl. Tolerance Monitor, Trends, Closed Loop, etc.
  • Integrated seismic mass
  • Remote control



Max. payload:  10 kg
Max. repetition rate:  up to 80/min.
Max. acceleration: up to 1400g
Payload area:  250x320mm
Shock-Direction: Z-axis
Floor space:  450mm x 370mm (height ~920mm)
Weight:  ~450kg

The STM50 has been developed to produce clean, highly reproducable half sine shocks of up to 600g width of approx. 1.0ms. With a maximum payload of 50kg and a shock repetition rate of 60/Minute, this machine is popular with  electro-components industry in the production screen testing environment. The STM50 is also suitable for environmental test labs.

  • Highly reproducible half sine shocks
  • IMPALA Control Software,
  • incl. Tolerance Monitor, Trends, Closed Loop, etc.
  • Integrated seismic mass
  • Remote control



Max. payload:  50 kg
Max. repetition rate:  up to 60/min.
Max. acceleration: up to 600g
Payload area:  470x520mm
Shock-Direction: Z-axis
Floor space:  450mm x 370mm (height ~920mm)
Weight:  ~900kg

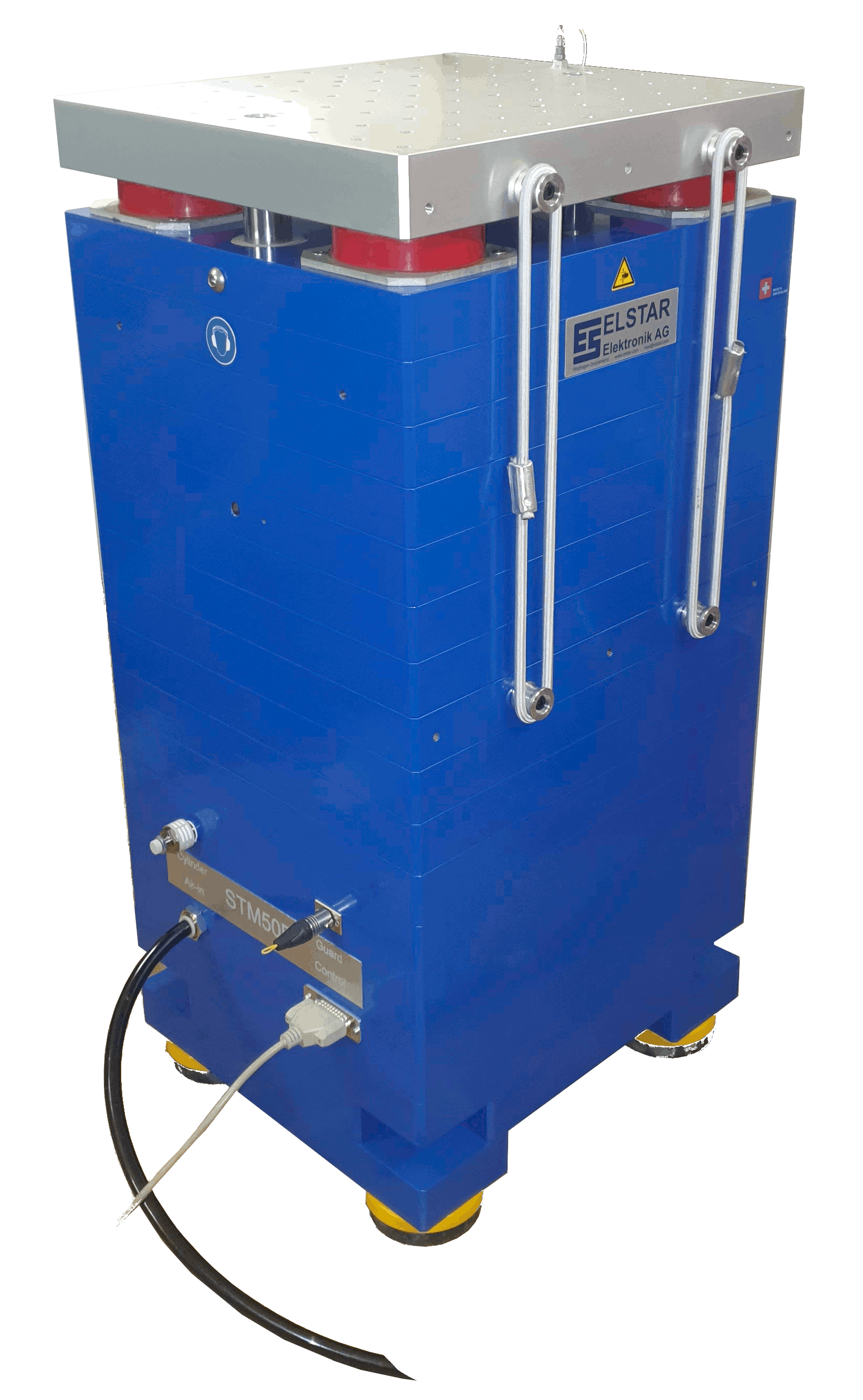

The STM50P has been developed to produce clean, highly reproducable half sine shocks of up to 1000g width of approx. 1.0ms. With a maximum payload of 50kg, this machine is popular with electro-components industry. The STM50P is suitable for environmental test labs.

  • Highly reproducable half sine shocks
  • IMPALA Control Software,
  • incl. Tolerance Monitor, Trends, Closed Loop, etc.
  • Integrated seismic mass
  • Remote control



Max. payload:  50 kg
Max. repetition rate:  up to 60/min.
Max. acceleration: up to 1000g
Payload area:  470x520mm
Shock-Direction: Z-axis
Floor space:  450mm x 370mm (height ~920mm)
Weight:  ~1260kg

The STM100 has been developed to produce clean, highly reproducable half sine shocks of up to 600g width of approx. 1.0ms. With a maximum payload of 100kg, this machine is popular with the presision optics  industry. The STM100 is suitable for environmental test labs.

  • Highly reproducable half sine shocks
  • IMPALA Control Software,
  • incl. Tolerance Monitor, Trends, Closed Loop, etc.
  • Integrated seismic mass
  • Remote control



Max. payload:  100 kg
Max. repetition rate:  up to 60/min.
Max. acceleration: up to 600g
Payload area:  470x520mm
Shock-Direction: Z-axis
Floor space:  450mm x 370mm (height ~920mm)
Weight:  ~1250kg

The STM200 has been developed to produce clean, highly reproducable half sine shocks of up to 450g width of approx. 1.5ms. With a maximum payload of 200kg, this machine is popular with the munitions and battery testing industry.

  • Highly reproducable half sine shocks
  • IMPALA Control Software,
  • incl. Tolerance Monitor, Trends, Closed Loop, etc.
  • Integrated seismic mass
  • Remote control



Max. payload:  200 kg
Max. repetition rate:  up to 60/min.
Max. acceleration: up to 450g
Payload area:  600x800mm
Shock-Direction: Z-axis
Floor space:  900mm x 920mm (height ~1400mm)
Weight:  ~3500kg
